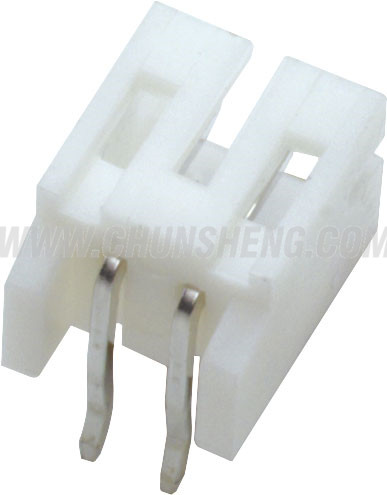

| PH-nAWJ |
| Upload Time: 2019-04-08 16:44:19 |
|
| Click for larger image |
|
SPECIFICATION |
| Contact Resistance | ≤20mΩ | | Insulation Resistance | ≥500MΩ | | Current Rating | 0.2~7A | | Voltage Rating | 30~250V DC/AC | | Withstand Voltage | 200V~1500v AC/minute | | Temperature Range | -25℃～+85℃ |
|
|
|
|
